Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine

Name: Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 75 USD
Availability: InStock

ブランド名:	WONDERY
Moq:	1
価格:	$75

詳細情報

製品説明

詳細情報

起源の場所:

福建省、中国

重さ:

1500 kg

コアコンポーネント:

モーター

歯の幅:

10mm

歯の重量:

5kg

クリンチングツールサイズ:

10MM,20MM,30MM,40MM

運転型:

空気圧またはサーボ

ラジエーターの高さ:

350-850mm

ラジエーター幅:

100~800mm

圧着方法:

ステッピングウェイ

生産能力:

24コア/時間

原動力:

サーボ +空気圧

歯の量を圧着しました:

最大100個

総電力:

1.5kw

電圧グレード:

AC-220V; 50Hz

全体的な次元:

2600×2200×1900mm

ハイライト:

10mm radiator clinching tool

auto radiator machine tool

radiator tank repair tool

製品説明

Radiator Tank Clinching Tool for Auto Radiator Plastic Tank Clinching Machine

Product Application

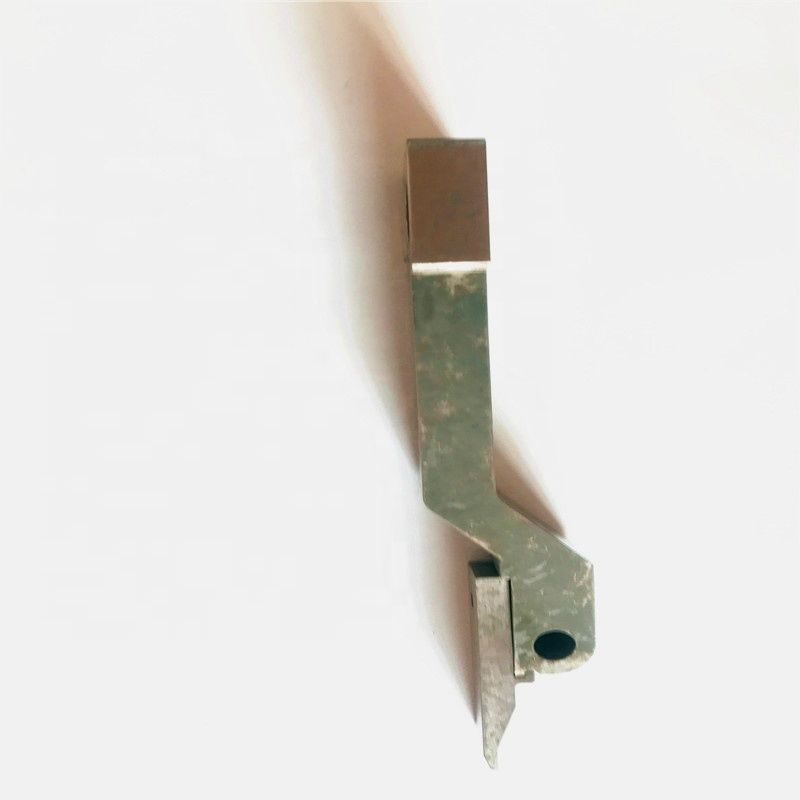

The clinching tool is the most important component for executing pushing over and clinching movements. Available in sizes of 10mm, 20mm, 30mm, or 40mm based on customer requirements.

This radiator tank clinching machine performs crimping of header plate teeth, securely locking the plastic tank to the core body. It creates a sealed space between the crimped plastic tank, sealing gasket, and header plate. The servo-type machine handles products of various specifications with step-by-step crimping set movement.

Technical Specifications

Clinching tool size	10mm, 20mm, 30mm, 40mm (customizable)
Driving type	Pneumatic or servo
Radiator height range	350-850mm
Max radiator width	100-800mm
Crimping method	Stepping way
Production capacity	Approximately 24 cores per hour
Driving force	Servo + pneumatic
Max crimped teeth quantity	100 pieces
Total power	1.5kW
Voltage	AC-220V, 50Hz
Dimensions (L×W×H)	2600×2200×1900mm
Weight	3.2 Ton

Key Features

The PLC-controlled tank clinching machine features a Taiwan-imported touch screen for setting crimping programs and monitoring working status. The control system stores multiple radiator crimping parameter groups.

The machine includes separate long header and short header crimping devices, with capability for dodge moves and step-forward movements. Available in one-position or two-position configurations.

About Wuxi Wondery Industry Equipment Co., Ltd.

Professional supplier of industrial machines serving automotive, HVAC, engineering vehicle, power generation, train, and ship industries. Specializing in radiator manufacturing equipment including fin machines, core builders, brazing furnaces, and various processing machines.

Established in 2008, we offer comprehensive services including technical consultation, installation, training, and maintenance. Our machines have been exported worldwide, with capability to design custom solutions based on specific requirements.

Frequently Asked Questions

What is the power supply requirement for the heat exchanger making machines?

The power supply is determined by customer requirements. We can adjust voltage and phase through a transformer or configure for direct use with the customer's voltage.

What information is needed for an accurate quotation?

Please provide technical requirements, drawings, photos, industrial voltage specifications, and planned production output.

What are the payment terms?

40% down payment, with 60% balance due before delivery (T/T transfer).

What is the typical delivery time?

30-60 days after receipt of down payment.
